Our offer

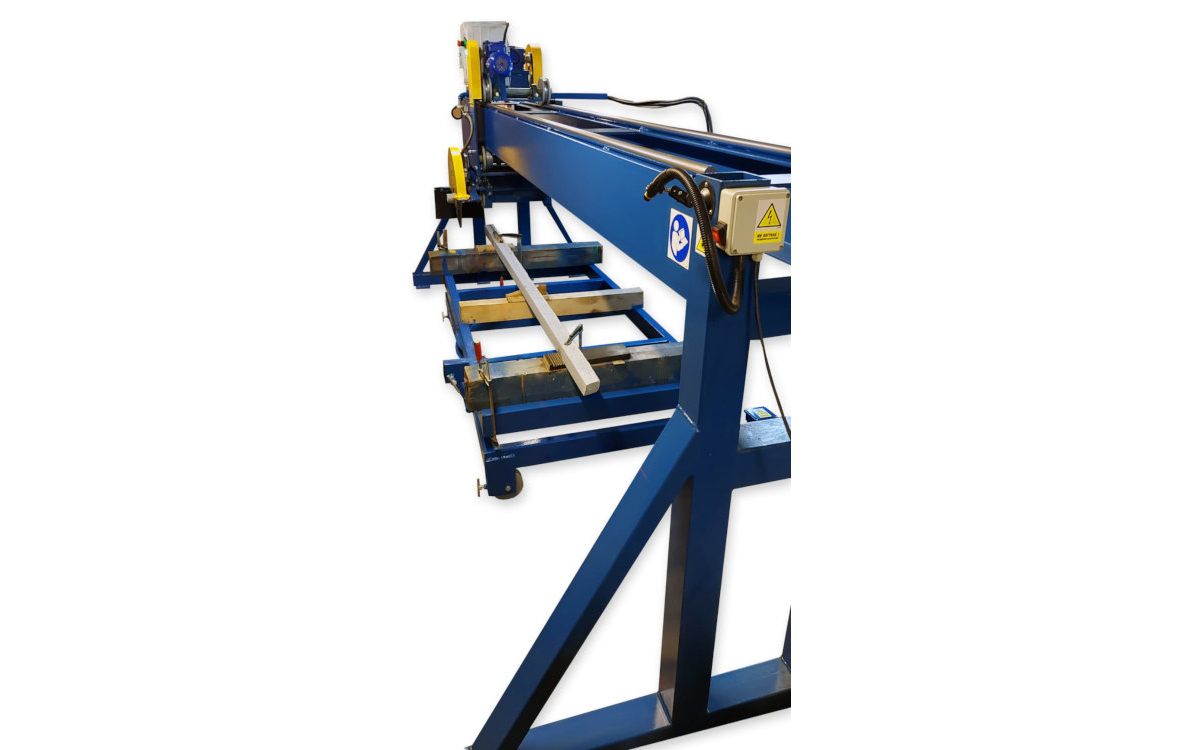

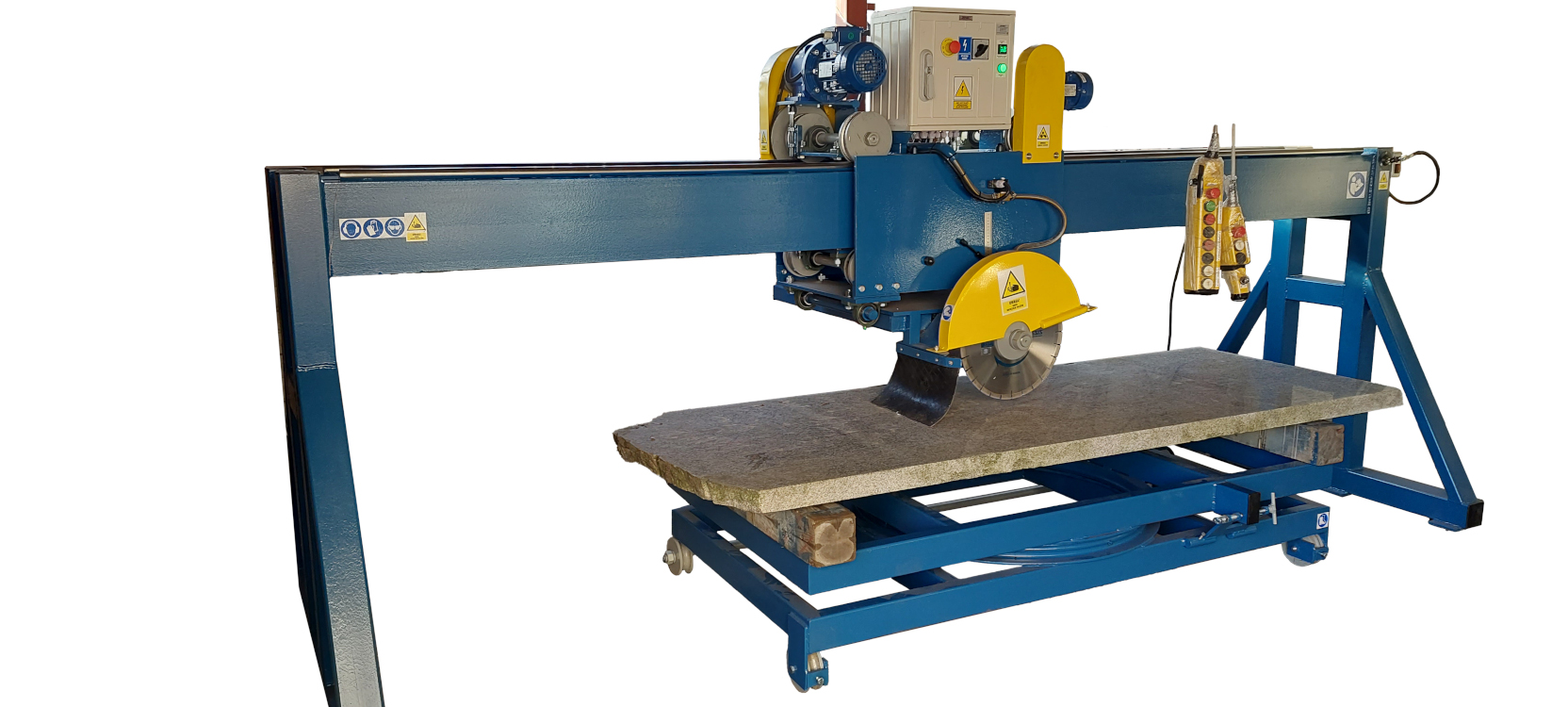

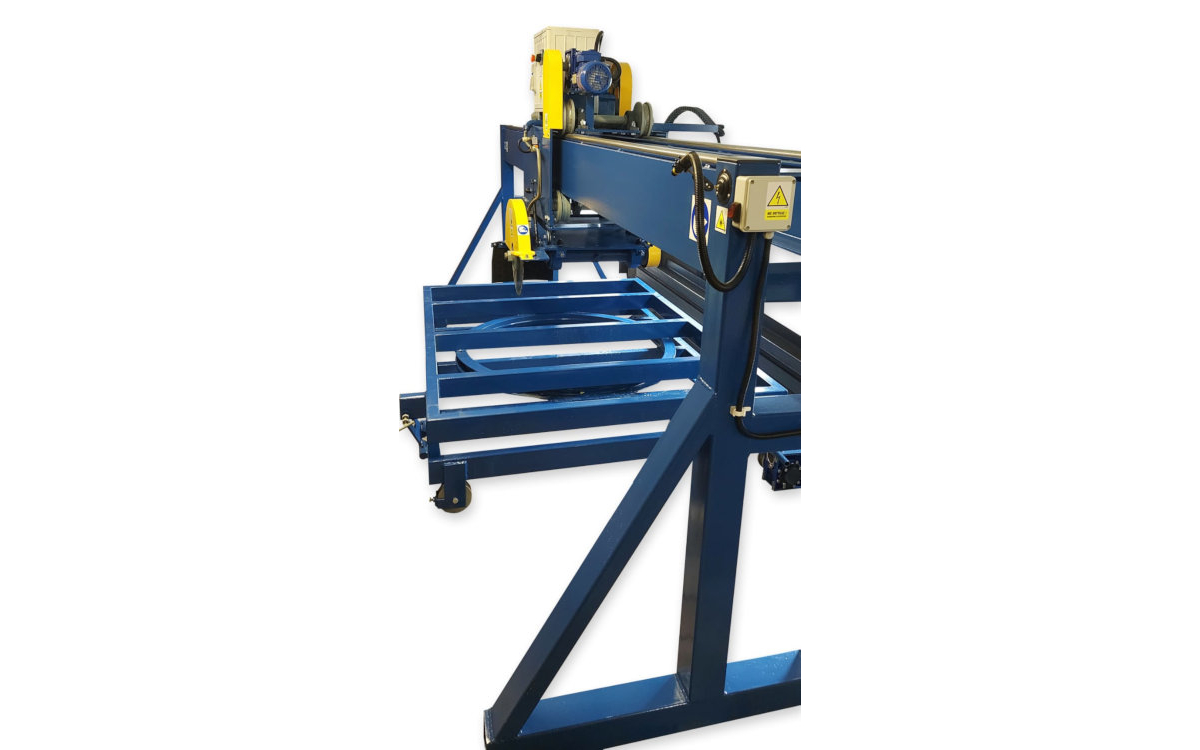

Saw for cutting natural stone
We offer you a massive saw for cutting granite, marble or other natural stones. We provide technical and start-up documentation (DTR), declaration of conformity (WE) and a 12-month warranty. It was made according to our own design and is distinguished by original design solutions.
parameters
- cutting length is 3 meters (possibility of making it longer or shorter), cutting length – 3 m
- dimensions: 4.2 m width 1.5 m height 2 m
- professional control with inverter (smooth regulation of feed speed)
- main engine with power of 4kW (possibility of installing a larger one according to the customer), indicators of voltage and current drawn by the main saw engine
- disc diameter 400 mm – 500 mm shaft fi 60 mm (possible to install a smaller one)
- support and carriage feed takes place on perfectly even full drawn rollers made of hardened steel S355J2C
- cutting thickness: from 0 mm to 200 mm
- limit sensors: stop (top – bottom, left – right)
- rotary table measuring 200×100 cm (possibility of increasing the working area) stopped every 90°, possibility of making on a turntable up to 4.5 T
- travel tracks for a 4 m trolley (possibility of ordering larger or smaller ones)
- optionally, it is possible to install a laser in the machine to mark the cutting lines, a solenoid valve to cut off the water supply and a drive that will move the trolley on the track
Profile side grinder
We present a side grinder for grinding straight sides of granite, marble and other natural stones. This very efficient and reliable device consumes little energy (1900 W), has an automatic lateral feed and allows for quick setting of the processed material. The standard processing size is 2.7 m, but it is possible to make a larger surface on individual order.
It is worth adding that the edge finishing machine is equipped with a programmable cycle counter that will completely turn off the machine after the previously set number of cycles has been completed and will cut off the water supply to it.
Side grinder for tombstones
We recommend a quiet machining device designed mainly for grinding granite slabs. The arm can be used for grinding both the straight side and the chamfer at a selected angle, and additionally polishing the element with the so-called wave. We provide a 12-month warranty for our device
parameters
- smooth adjustment of the main engine speed (200-3000 rpm), to which we can also mount any tool adapted to the M14 thread (milling, drilling, grinding, polishing)
- large arm reach allows for efficient processing of even long elements
- 360-degree arm rotation
- very quiet operation
- stable construction of the device
- the pressure can be supported by a pneumatic actuator, for which the appropriate pulling force and reaction speed are selected
- we can additionally equip the device with an automatic water solenoid valve, which will operate together with the main engine
- at the request of customers, we additionally install LED lighting for the spindle and the workpiece
- no need for a power installation (3 phases), because the device operates from a regular 230 V socket
- fast lead times

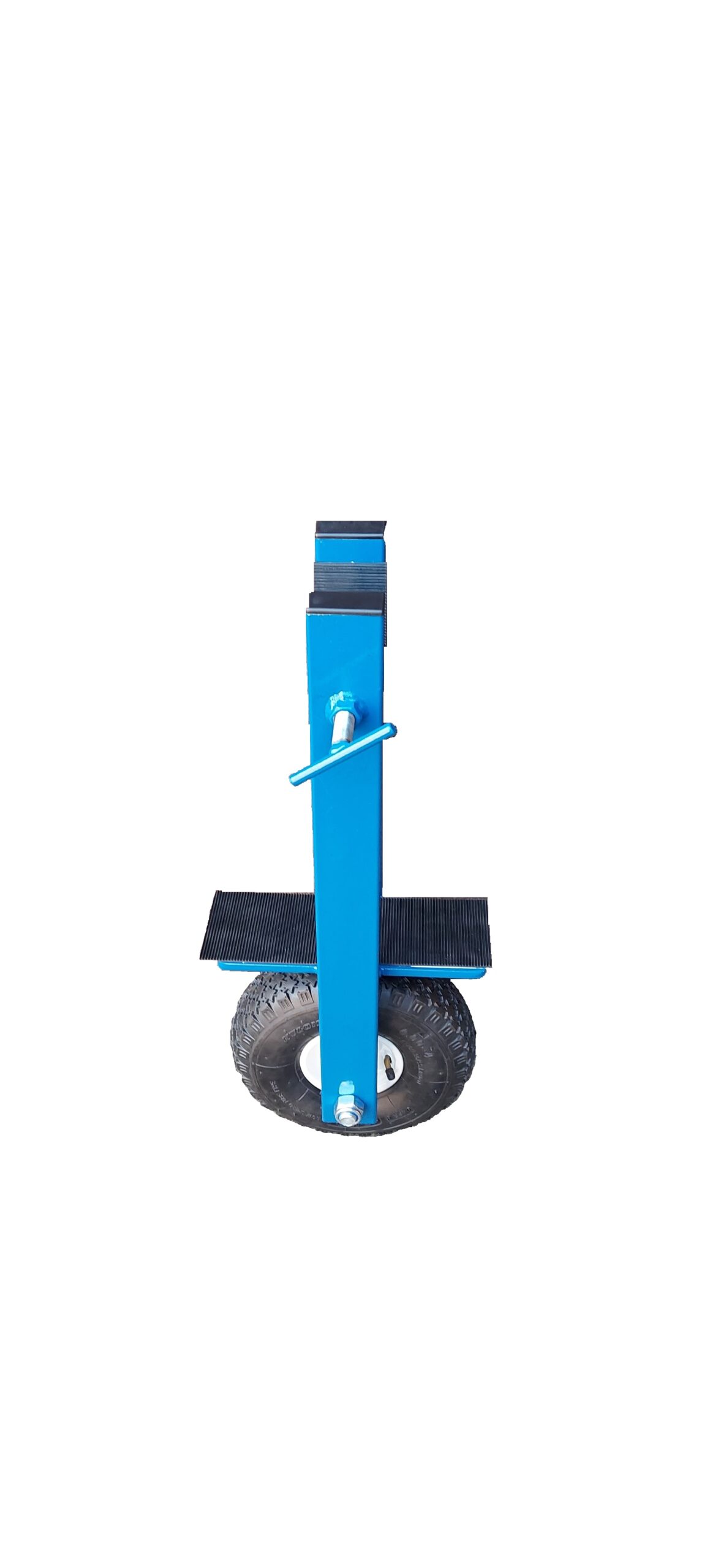

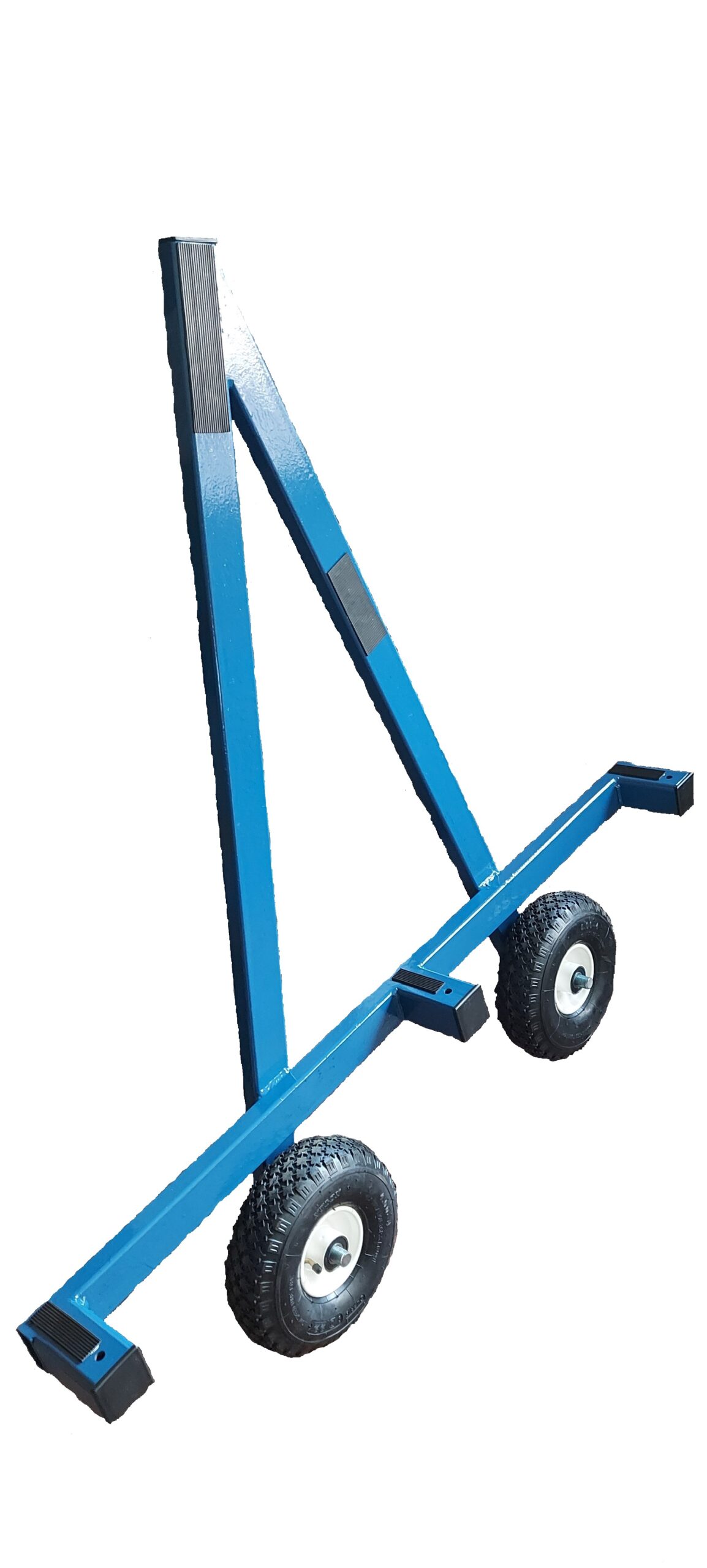

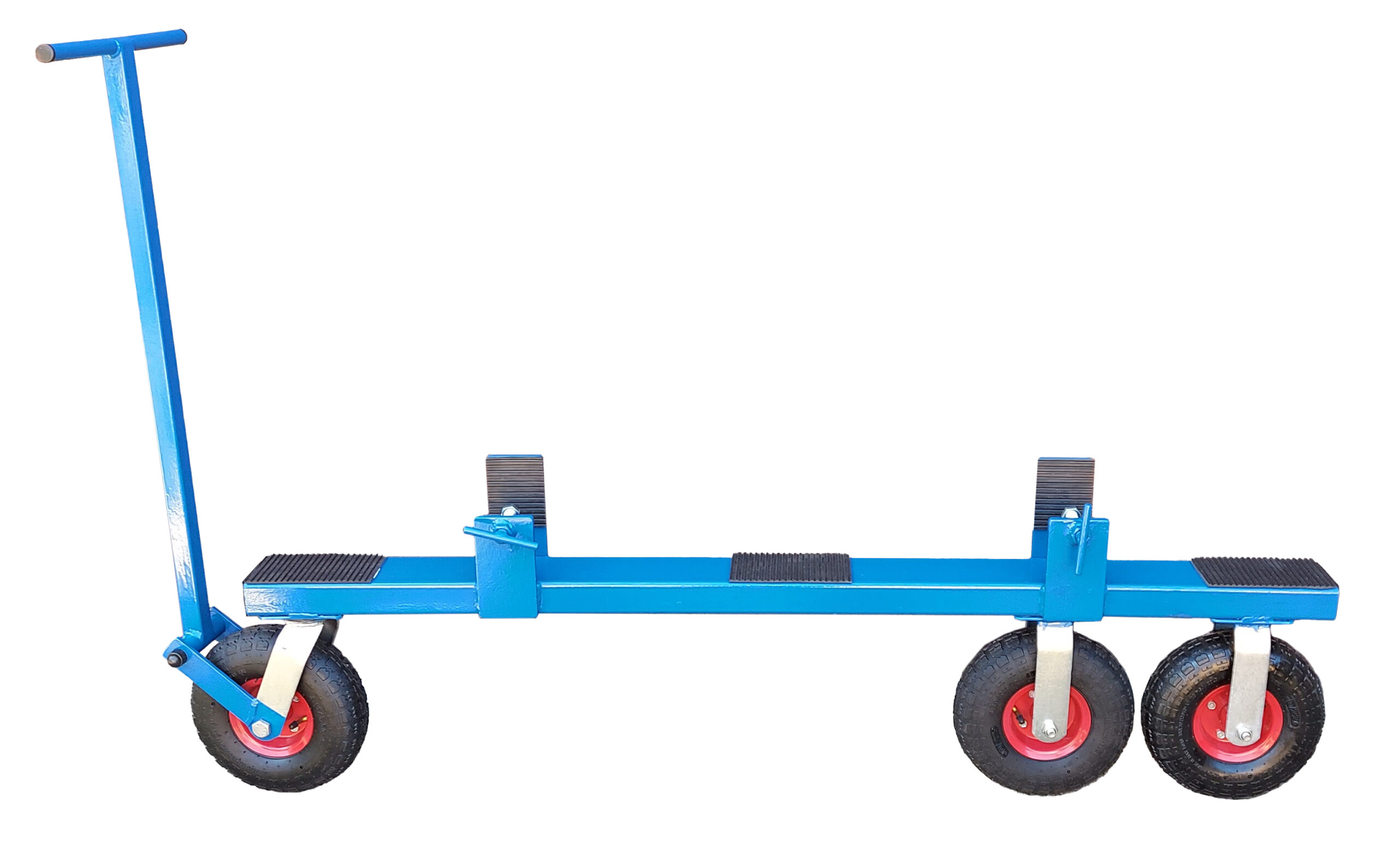

Transport trolleys for the transport of stone slabs
We offer a transport trolley for transporting granite slabs, plasterboard and other large heavy elements that require moving over longer distances. It is adapted to loads weighing 300-400 kg and up to 12 cm thick. The trolley wheels are ball-bearing and inflatable.

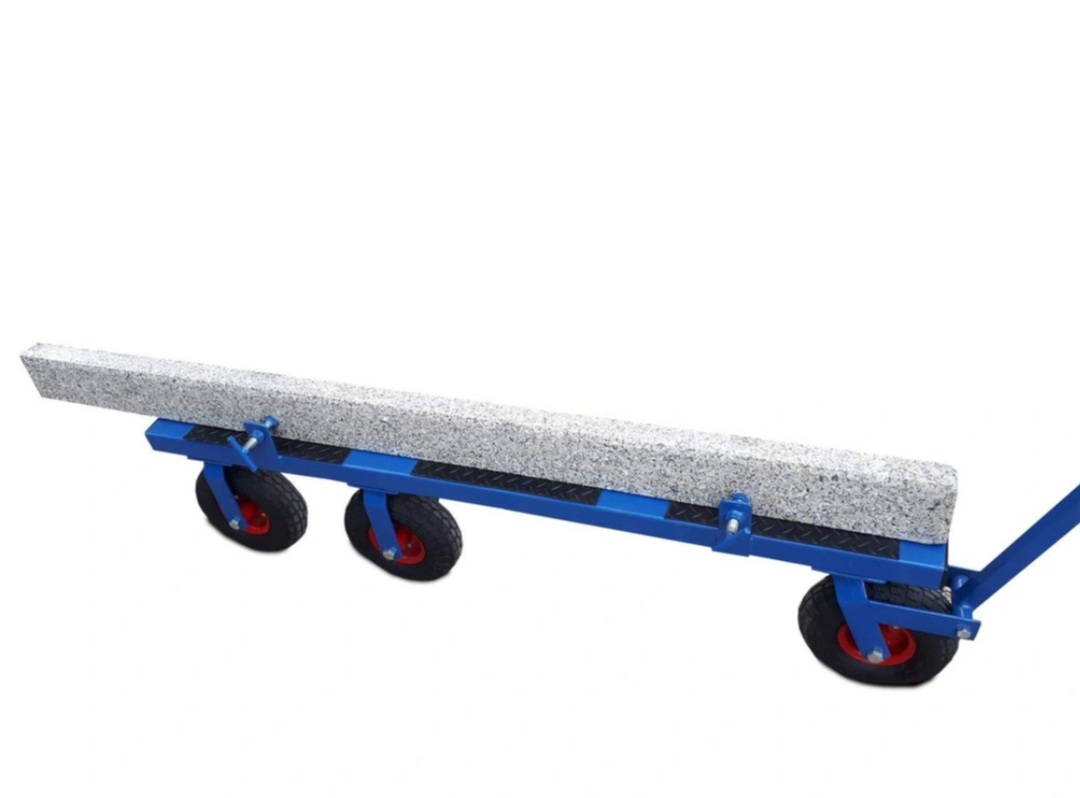

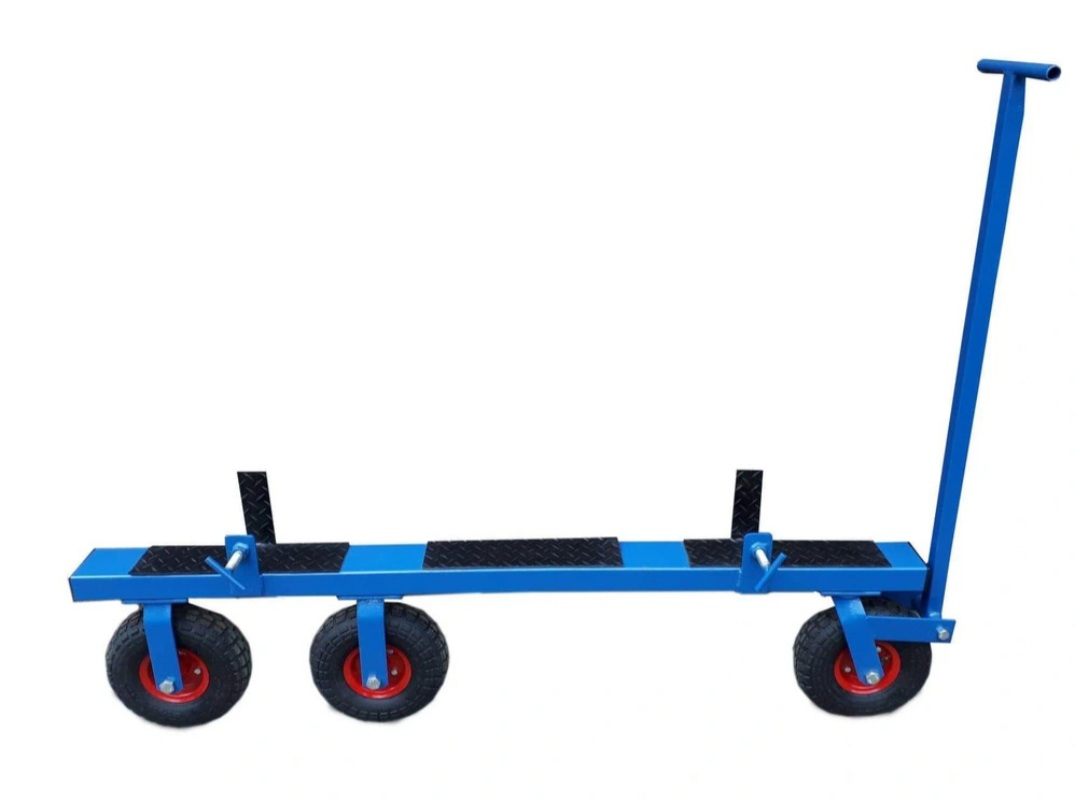

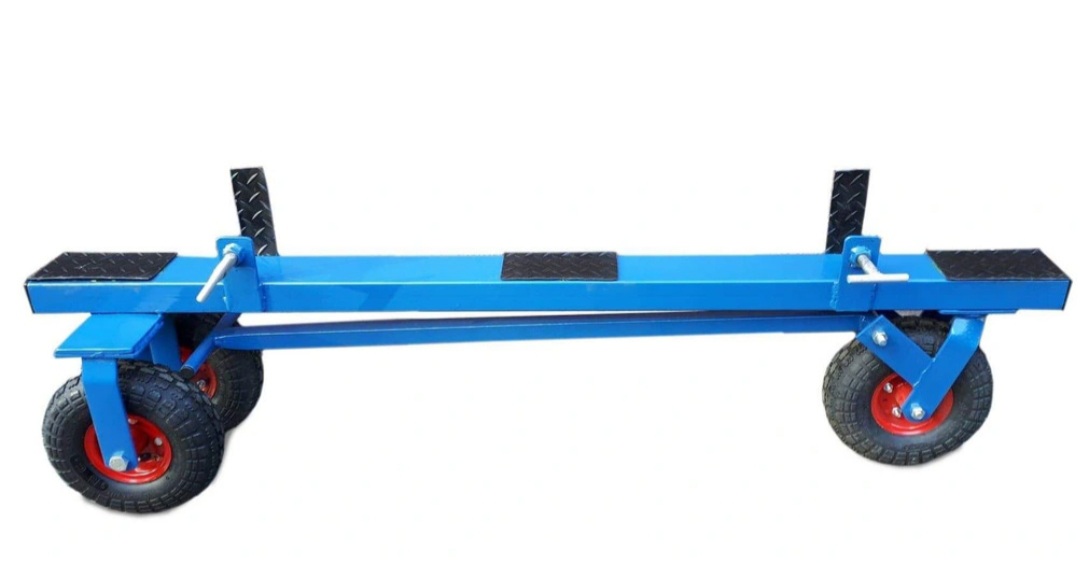

A scooter-type trolley with a front swivel wheel is an ideal solution for transporting tombstones, as it allows for easy maneuvering even in narrow passages and alleys. It can transport loads weighing 300-400 kg. Importantly, the plate on the trolley is placed vertically, which protects it from damage. We provide scooters with three wheels in one row (easy to overcome narrower passages) or two rear wheels next to each other (greater stability).

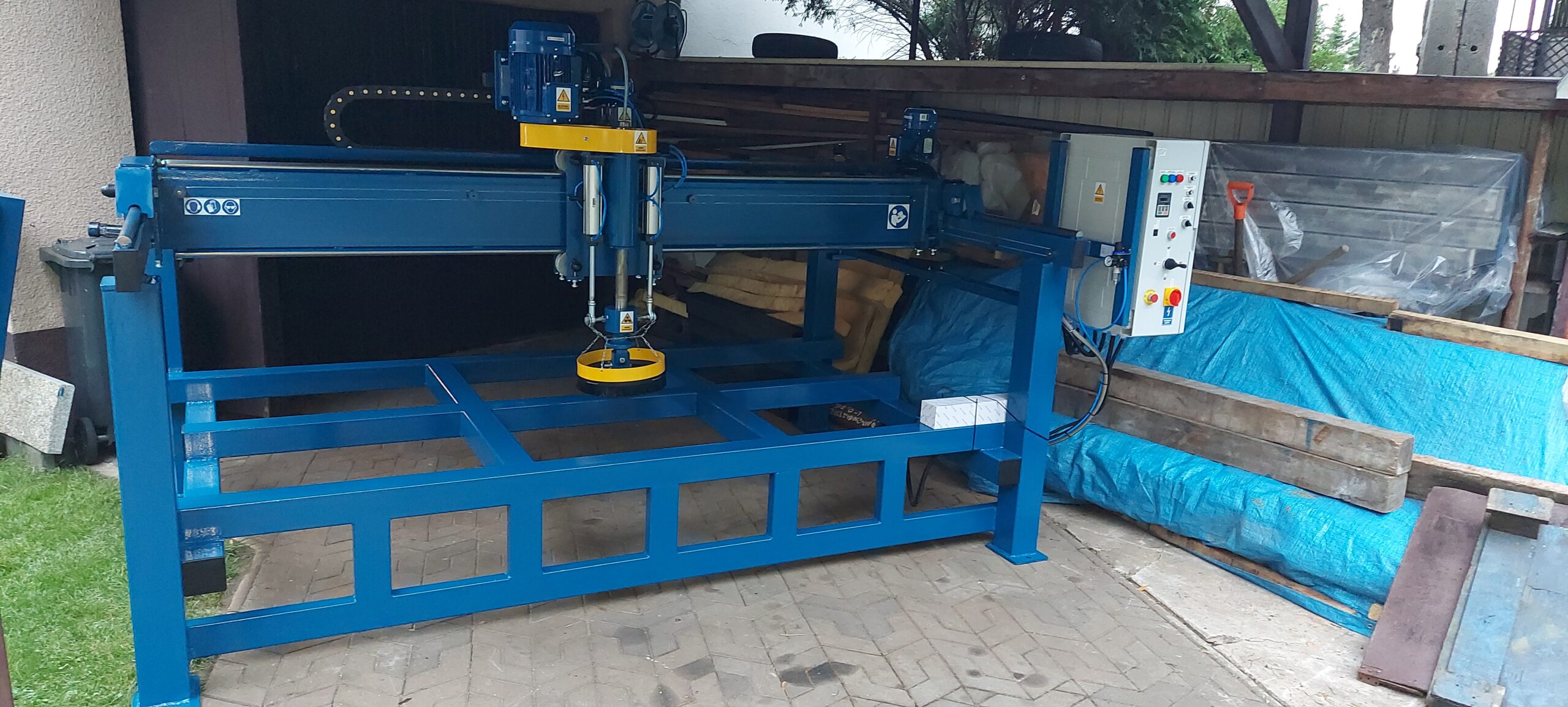

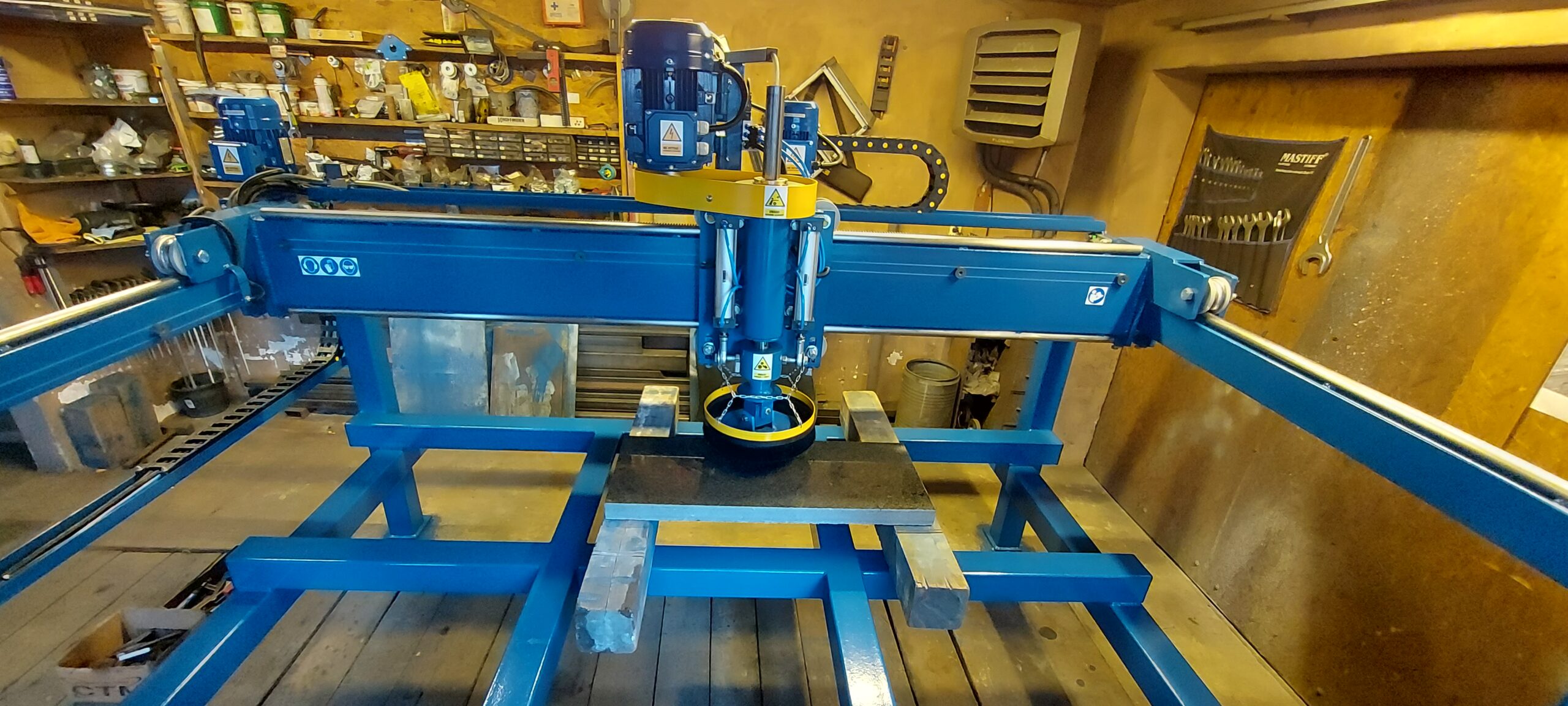

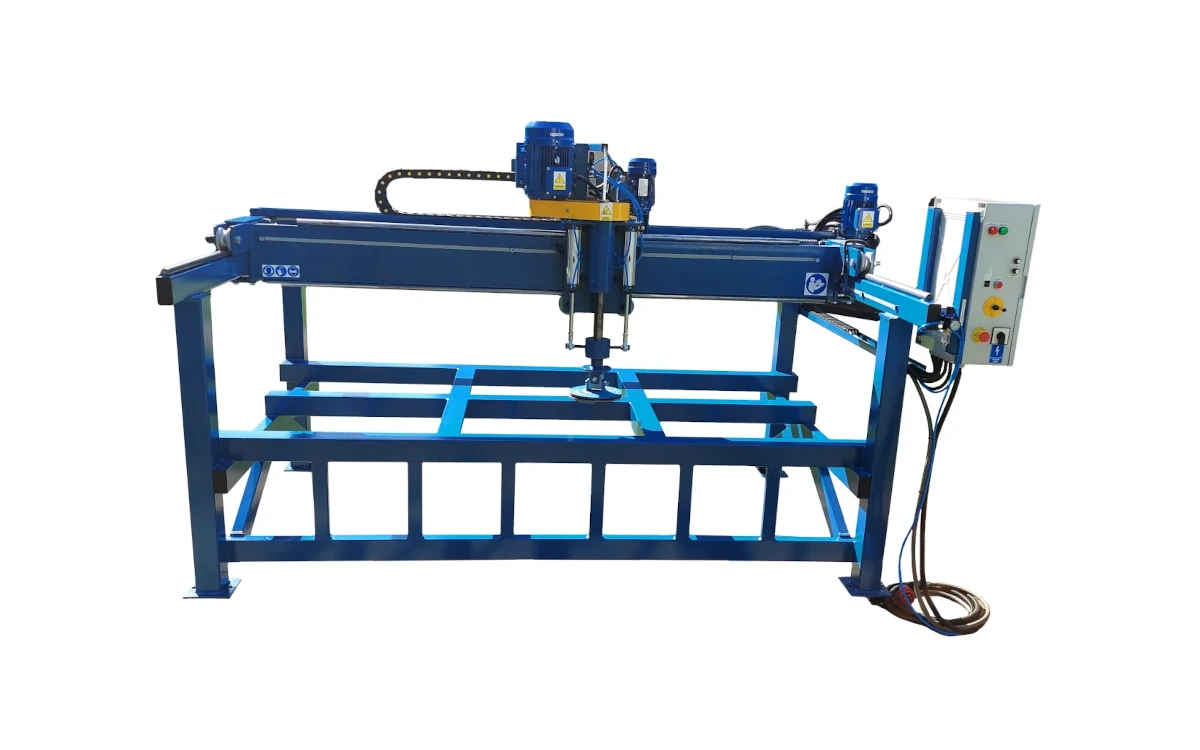

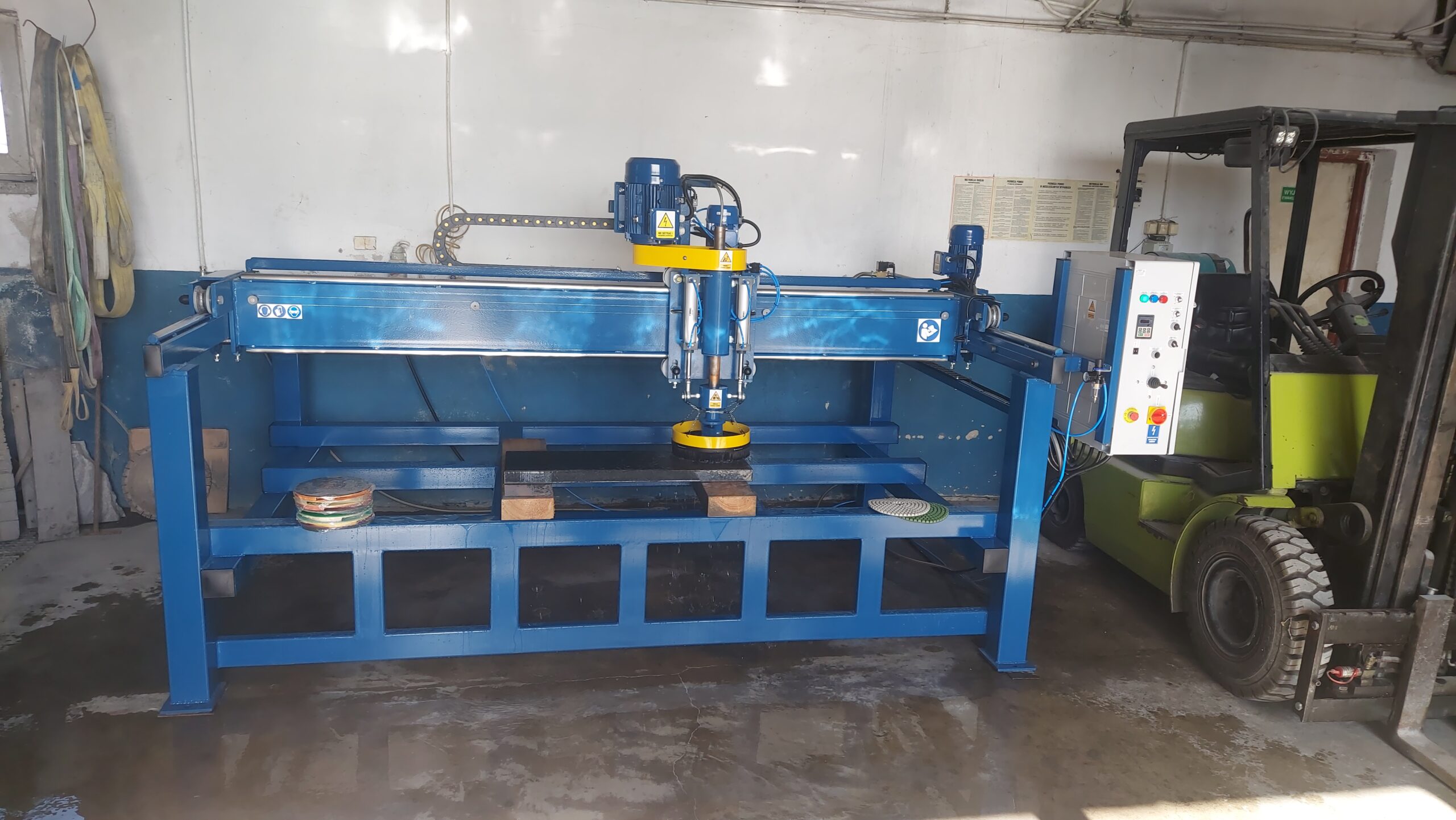

Small polishing machine
We recommend a device designed mainly for grinding and polishing granite boards and other natural stones. The polishing machine can be used both for grinding the straight side (edge grinder function). Work can be done in manual and automatic mode.
parameters
- hardened guides, hardened toothed bars
- standard working area is 240x130cm (possibility of changing dimensions)
- small external dimensions of the machine with a standard area: length 3.4m, width 2.2m, height 2m
- professional control with inverters (smooth speed regulation of all axes, also the main engine at an additional charge)
- 4kW main engine
- pneumatic pressure force regulation (up to 320 kg)
parameters
- limit switches limiting the carriage’s up-down movement
- output speed to the grinding head approx. 350 rpm
- auxiliary pneumatic actuator – pressing
Knee-lever grinders
Knee grinder – a device for grinding and polishing granite boards and other natural stones. Main engine 4kW 1430rpm. Gear motor for lifting 0.55 kW. Solenoid valve switching on simultaneously with the main engine.
